Unitrack Plan for Scenic Ridge Layout Kit
- Scale
- N1:148–160
- Gauge
- 9 mm
- Footprint
- Not stated
- Track system
- UNITRACK
- Parts list
- 21 parts · with quantities
Source
Retrieved 2026-10-10

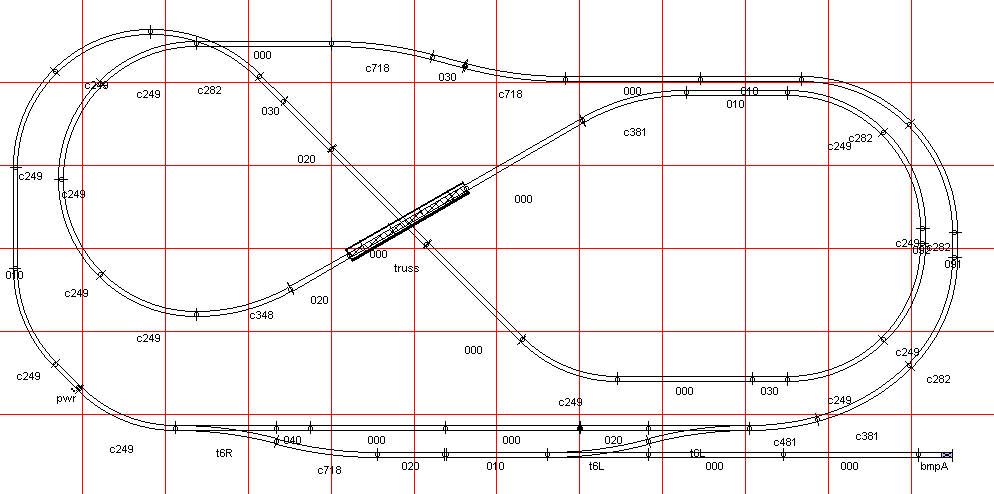

- Track plan ↗GIF
Parts list
21 parts57 pieces20 in our catalog
Purple part numbers open the catalog page. Grey ones aren't in the catalog yet.
Quantities that aren't plain numbers are shown as written and left out of the total.
| Part no. | Name | Qty |
|---|---|---|
| 20-000Possible match | N 248 mm Straight Track (4 ea)248mm (9 3/4") Straight Track | 10 |
| 20-010Possible match | N 186mm StraightTrack (4 ea) (7 5/16)186mm (7 5/16") Straight Track | 4 |
| 20-020Possible match | N 124mm StraightTrack (4 ea) (4 7/8)124mm (4 7/8") Straight Track | 4 |
| 20-030Possible match | N 64mm Straight Track (2 ea) (2 1/2)64mm (2 1/2") Straight Track | 3 |
| 20-040Possible match | N 62mm Straight Track (4 ea) (2 1/2)62mm (2 7/16") Straight Track | 1 |
| 20-041Possible match | N 62mm Feeder Track (2 1/2)62mm (2 7/16") Feeder Track | 1 |
| 20-046~048Choose one of 320-046Possible match20-047Possible match20-048Possible match | Bumper (Use any of three styles) | 1 |
| 20-091Possible match | N Track Assortment, 29mm,45.5mm29mm (1 1/8") Straight Track | 1 ea |
| 20-091Possible match | N Track Assortment, 29mm,45.5mm45.5mm (1 3/4") Straight Track | 1 ea |
| 20-100Possible match | N R249-45 CURVED TR. 4EA (9 3/4-45d)249mm (9 3/4") Radius 45 Curve Track | 13 |
| 20-110Possible match | N R282-45 Curved Track (4 ea) (11-45d)282mm (11") Radius 45 Curve Track | 4 |
| 20-130Possible match | N R348-30 Curved Track (4 ea) (13 3/4-30d)348mm (13 3/4") Radius 30 Curve Track | 1 |
| 20-140Possible match | N R381-30 Curved Track (4ea) (15-30d)381mm (15") Radius 30 Curve Track | 2 |
| 20-150Possible match | N R718-15 Curved Track (4 ea) (28 1/4-15d)718mm (28 1/4") Radius 15 Curve Track | 3 |
| 20-160Possible match | N R481-15 Curved Track (4 ea) (19-15d)481mm (19") Radius 15 Curve Track | 1 |
| 20-202Possible match | N Electric Left Hand Turnout, #6#6 Left Turnout | 2 |
| 20-203Possible match | N Electric Right Hand Turnout, #6#6 Right Turnout | 1 |
| 20-450~454Choose one of 520-450Possible match20-451Possible match20-452Possible match20-453Possible match20-454Possible match | 186mm (7 5/16") Single Track Plate Girder Bridge | 1 |
| 24-843Possible match | Power Pack Adapter CordTerminal Adapter Cord • Used to connect Feeder Track to power pack. | 1 |
| 24-840 | Turnout Control Switch | 3 |
| 24-842Possible match | DC Converter for Turnout Control SwitchesDC Converter (If 24-840 is used) | 1 |
| Total | 57 | |
