Track Plan Using 8.5″ Radius
- Scale
- N1:148–160
- Gauge
- 9 mm
- Footprint
- Not stated
- Track system
- UNITRACK
- Parts list
- 15 parts · with quantities
Source
Retrieved 2026-10-10

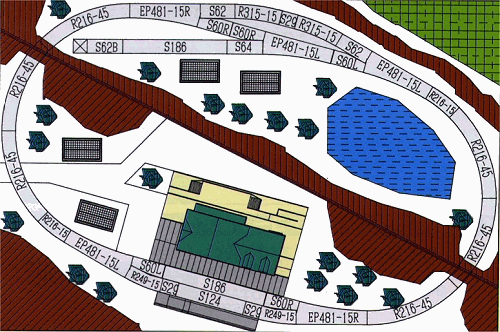

- Track plan ↗GIF
Parts list
15 parts30 pieces12 in our catalog
Purple part numbers open the catalog page. Grey ones aren't in the catalog yet.
| Part no. | Name | Qty |
|---|---|---|
| 20-010Possible match | N 186mm StraightTrack (4 ea) (7 5/16)186mm (7 5/16") Straight Track | 2 |
| 20-020Possible match | N 124mm StraightTrack (4 ea) (4 7/8)124mm (4 7/8") Straight Track | 1 |
| — | 64mm (2 1/2") Straight Track (Comes In Turnout Package) | 1 |
| 20-040Possible match | N 62mm Straight Track (4 ea) (2 1/2)62mm (2 7/16") Straight Track | 2 |
| 20-091Possible match | N Track Assortment, 29mm,45.5mm29mm (1 1/8") | 3 |
| 20-046 OR 20-047 | 62mm (2 7/16") Bumper | 1 |
| 20-101Possible match | N R249-15 CURVED Track (4 ea) (9 3/4-15d)249mm (9 3/4") Radius 15 Curve Track | 2 |
| 20-121Possible match | N R315-15 Curved Track (4 ea) (12 3/8-15d)315mm (12 3/8") Radius 15 Curve Track | 2 |
| 20-170Possible match | N R216-45 Ccurved Track (4ea) (8.5-45d)216mm (8 9/16") Radius 45 Curve Track | 6 |
| 20-171Possible match | N R216-15 Curved Track (4 ea) (8.5-15d)216mm (8 9/16") Radius 15 Curve Track | 2 |
| 20-220Possible match | N Electric Left Hand Turnout #4#4 Left Turnout (Includes S60L/R Straight Tracks) | 3 |
| 20-221Possible match | N Electric Right Hand Turnout, #4#4 Right Turnout (Includes S60L/R Straight Tracks) | 2 |
| 23-211 | Suburban Station | 1 |
| 24-818Possible match | Terminal UniJoinersTerminal UniJoiner | 1 |
| 24-843Possible match | Power Pack Adapter CordTerminal Adapter Cord • Used to connect Terminal Unijoiners to power pack. | 1 |
| Total | 30 | |
