Simple Double Track Plate Layout
- Scale
- N1:148–160
- Gauge
- 9 mm
- Footprint
- Not stated
- Track system
- UNITRACK
- Parts list
- 6 parts · with quantities
Source
Retrieved 2026-10-10

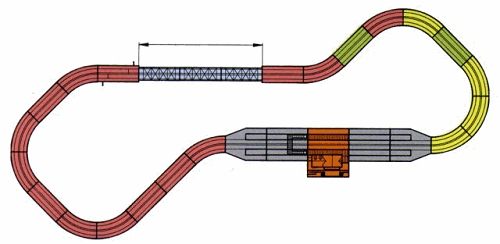

- Track plan ↗GIF
Parts list
6 parts12 pieces1 in our catalog
Purple part numbers open the catalog page. Grey ones aren't in the catalog yet.
Each colour on the plan matches the Colour on plan column below.
| Colour on plan | Part no. | Name | Qty |
|---|---|---|---|
| Red Shaded | 20-841 | Double Track Plate Set | 1 |
| Green Shaded | 20-001 | 248mm (9 3/4") Double Track Plate Straight | 2 |
| Yellow Shaded | 20-112 | 282mm (11") + 315mm (12 3/8") Radius 45 Double Track Plate Curve Track | 4 |
| Blue Shaded | 20-435~438Choose one of 420-435Not in catalog20-436Possible match20-437Possible match20-438Possible match | 248mm (9 3/4") Double Track Truss Bridge | 3 |
| Orange Shaded | 23-126 | Suburban Station for Double Track Plate | 1 |
| Gray Shaded | 23-127 | Suburban Platform Set for Double Track Plate | 1 |
| Total | 12 | ||
