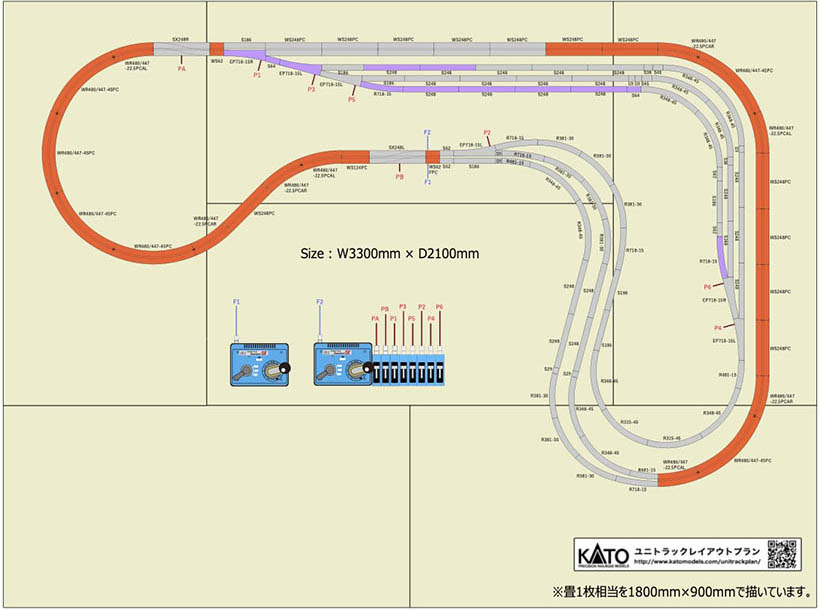

KATO Japanplan_N4_002
US/EU 001
- Scale
- N1:148–160
- Gauge
- 9 mm
- Footprint
- Not stated
- Track system
- UNITRACK
- Parts list
- 26 parts · with quantities
Source
Retrieved 2026-10-10
- Track plan ↗PDF · 1p
- Parts list ↗PDF · 1p
- Package list ↗PDF · 1p
- Track symbol key (shared by all plans) ↗PDF · 6p
Parts list
26 parts127 pieces10 in our catalog
Purple part numbers open the catalog page. Grey ones aren't in the catalog yet.
| Symbol | Part no. | Name | Qty |
|---|---|---|---|
| S248 | 20-000 | — | 22 |
| S186 | 20-010 | — | 7 |
| S64 | 20-030 | — | 2 |
| S62 | 20-040 | — | 4 |
| R315-45 | 20-120 | — | 2 |
| R348-45 | 20-132 | — | 12 |
| R381-30 | 20-140 | — | 9 |
| R481-15 | 20-160 | — | 3 |
| R718-15 | 20-150 | — | 6 |
| S45 | 20-091 | — | 2 |
| S29 | 20-091 | — | 7 |
| S38 | 20-092Possible match | 端数線路セットB | 2 |
| WS248PC | 20-004 | — | 12 |
| WS124PC | 20-023 | — | 1 |
| WS62PC | 20-042 | — | 1 |
| 複線フィーダー線路 WS62FPC | 20-043 | — | 1 |
| WR480/447-45PC | 20-185Possible match | 複線曲線線路R480/447mm45° | 6 |
| WR480/447PCAL | 20-186Possible match | 複線アプローチ線路セットR480/447mm(左・右) | 4 |
| WR480/447PCAR | 20-186Possible match | 複線アプローチ線路セットR480/447mm(左・右) | 4 |
| EP718-15L | 20-202Possible match | 電動ポイント6番(左) | 4 |
| EP718-15R | 20-203Possible match | 電動ポイント6番(右) | 2 |
| SX248L | 20-230Possible match | 複線片渡りポイント4番左 | 1 |
| SX248R | 20-231Possible match | 複線片渡りポイント4番右 | 1 |
| ポイントスイッチ | 24-840Possible match | ポイントスイッチ | 8 |
| — | 22-012 | — | 2 |
| — | 22-082Possible match | N用ACアダプター | 2 |
| Total | 127 | ||
