KATO JapanPlan_H06
HOユニ トラ ック レイアウトプラン HO-06 (01_06)
- Scale
- HO1:87
- Gauge
- 16.5 mm
- Footprint
- 150 × 90 cm
- Track system
- UNITRACK
- Parts list
- 8 parts · with quantities
Source
Retrieved 2026-10-10

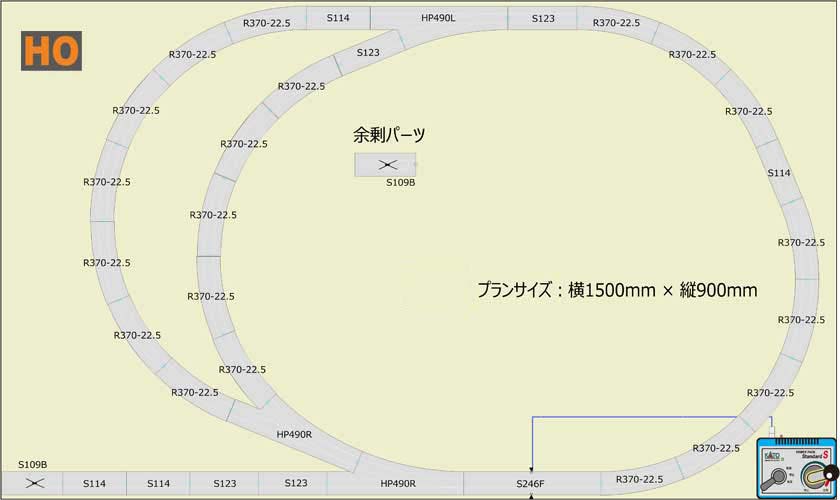

- Track plan ↗PDF · 1p
- Parts list ↗PDF · 1p
- Package list ↗PDF · 1p
- Track symbol key (shared by all plans) ↗PDF
Parts list
8 parts34 pieces7 in our catalog
Purple part numbers open the catalog page. Grey ones aren't in the catalog yet.
| Symbol | Part no. | Name | Qty |
|---|---|---|---|
| S246F | 2-151Possible match | フィーダー線路 246mm | 1 |
| S114 | 2-120Possible match | 直線線路 114mm | 4 |
| S123 | 2-140Possible match | 直線線路 123mm | 4 |
| S109B | 2-170Possible match | 車止め線路 109mm | 1 |
| R370-22.5 | 2-280Possible match | 曲線線路 R370−22.5 | 20 |
| HP490L | 2-840Possible match | (HO)手動ポイントR490左 | 1 |
| HP490R | 2-841Possible match | (HO)手動ポイントR490右 | 2 |
| — | 22-012 | — | 1 |
| Total | 34 | ||
