KATO JapanPlan_H01

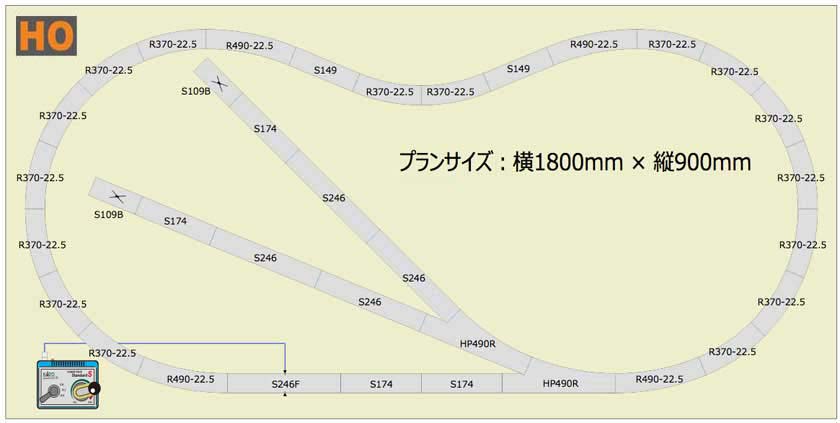

HOユニトラック レイアウトプラン HO-01 (01_01)
- Scale
- HO1:87
- Gauge
- 16.5 mm
- Footprint
- 180 × 90 cm
- Track system
- UNITRACK
- Parts list
- 9 parts · with quantities
Source
Retrieved 2026-10-10
- Track plan ↗PDF · 1p
- Parts list ↗PDF · 1p
- Package list ↗PDF · 1p
- Track symbol key (shared by all plans) ↗PDF
Parts list
9 parts36 pieces8 in our catalog
Purple part numbers open the catalog page. Grey ones aren't in the catalog yet.
| Symbol | Part no. | Name | Qty |
|---|---|---|---|
| S246 | 2-150Possible match | 直線線路 246mm | 4 |
| S246F | 2-151Possible match | フィーダー線路 246mm | 1 |
| S174 | 2-130Possible match | 直線線路 174mm | 4 |
| S149 | 2-193Possible match | 直線線路 149mm | 2 |
| S109B | 2-170Possible match | 車止め線路 109mm | 2 |
| R490-22.5 | 2-270Possible match | (HO)曲線R490−22.5 | 4 |
| R370-22.5 | 2-280Possible match | 曲線線路 R370−22.5 | 16 |
| HP490R | 2-841Possible match | (HO)手動ポイントR490右 | 2 |
| — | 22-012 | — | 1 |
| Total | 36 | ||
