KATO JapanPlan_CPT01-03
プラン コンパクト03 (01_03)
- Scale
- N1:148–160
- Gauge
- 9 mm
- Footprint
- 120 × 90 cm
- Track system
- UNITRACK
- Parts list
- 15 parts · with quantities
Source
Retrieved 2026-10-10

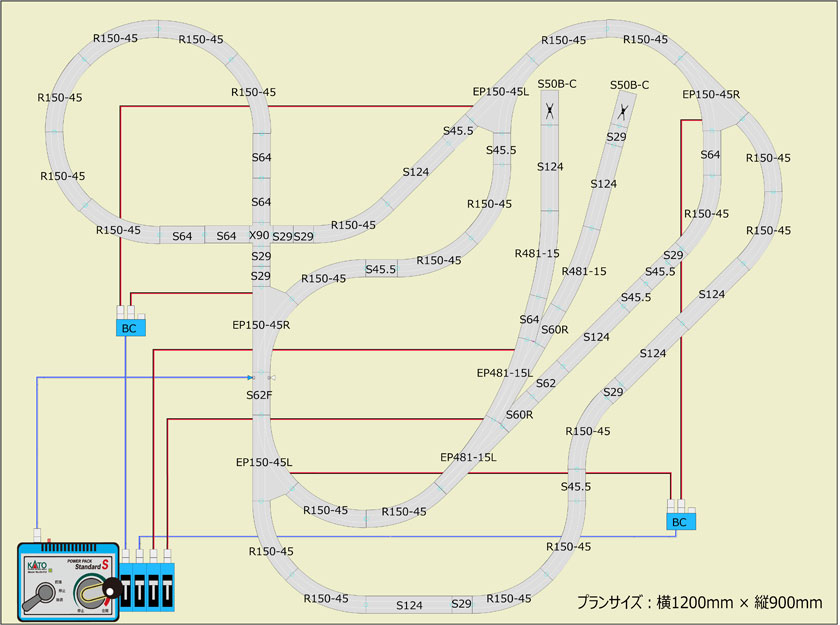

- Track plan ↗PDF · 1p
- Parts list ↗PDF · 1p
- Package list ↗PDF · 1p
- Track symbol key (shared by all plans) ↗PDF · 6p
Parts list
15 parts61 pieces6 in our catalog
Purple part numbers open the catalog page. Grey ones aren't in the catalog yet.
| Symbol | Part no. | Name | Qty |
|---|---|---|---|
| S124 | 20-020 | — | 7 |
| S64 | 20-030 | — | 2 |
| S62 | 20-040 | — | 1 |
| S62F | 20-041 | — | 1 |
| S45.5 | 20-091 | — | 5 |
| S29 | 20-091 | — | 7 |
| X90 | 20-320 | — | 1 |
| R150-45 | 20-174Possible match | コンパクト曲線線路 R150mm | 22 |
| S50B-C | 20-048Possible match | 車止め線路C 50mm | 2 |
| EP150-45L | 20-240Possible match | 電動ポイントR150mm 左 | 2 |
| EP150-45R | 20-241Possible match | 電動ポイントR150mm 右 | 2 |
| EP481-15L | 20-220Possible match | 電動ポイント4番(左) | 2 |
| ポイントスイッチ | 24-840Possible match | ポイントスイッチ | 4 |
| 分岐コネクター(⻘・白)BC | 24-827 | — | 2 |
| — | 22-012 | — | 1 |
| Total | 61 | ||
