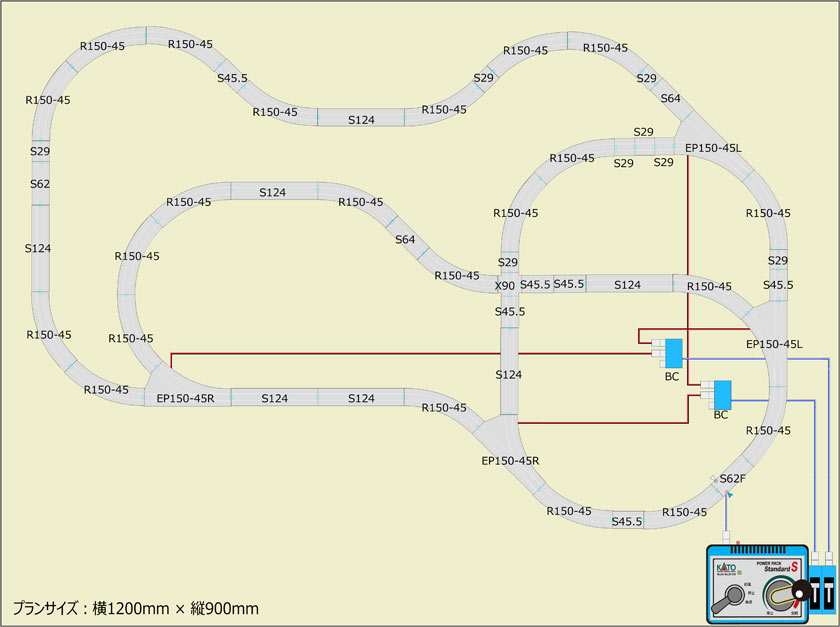

KATO JapanPlan_CPT01-02
プラン コンパクト02 (01_02)
- Scale
- N1:148–160
- Gauge
- 9 mm
- Footprint
- Not stated
- Track system
- UNITRACK
- Parts list
- 14 parts · with quantities
Source
Retrieved 2026-10-10
- Track plan ↗PDF · 1p
- Parts list ↗PDF · 1p
- Package list ↗PDF · 1p
- Track symbol key (shared by all plans) ↗PDF · 6p
Parts list
14 parts55 pieces5 in our catalog
Purple part numbers open the catalog page. Grey ones aren't in the catalog yet.
| Symbol | Part no. | Name | Qty |
|---|---|---|---|
| S124 | 20-020 | — | 7 |
| S64 | 20-030 | — | 2 |
| S62 | 20-040 | — | 1 |
| S62F | 20-041 | — | 1 |
| S45.5 | 20-091 | — | 5 |
| S29 | 20-091 | — | 7 |
| X90 | 20-320 | — | 1 |
| R150-45 | 20-174Possible match | コンパクト曲線線路 R150mm | 18 |
| R117-45 | 20-176Possible match | コンパクト曲線線路 R117mm | 4 |
| EP150-45L | 20-240Possible match | 電動ポイントR150mm 左 | 2 |
| EP150-45R | 20-241Possible match | 電動ポイントR150mm 右 | 2 |
| ポイントスイッチ | 24-840Possible match | ポイントスイッチ | 2 |
| 分岐コネクター(⻘・白)BC | 24-827 | — | 2 |
| — | 22-012 | — | 1 |
| Total | 55 | ||
