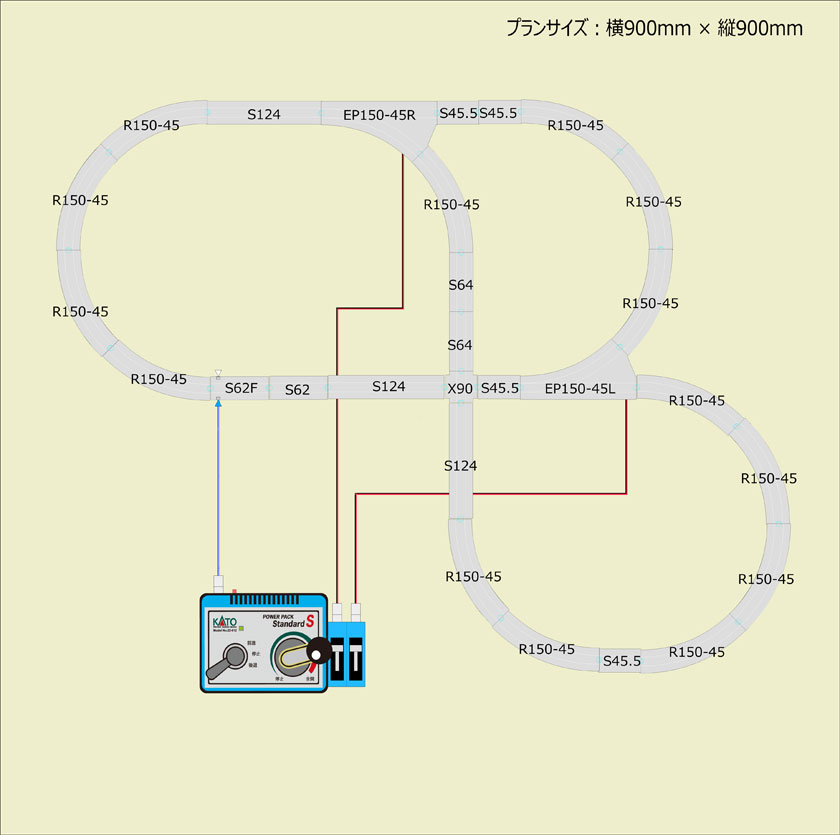

KATO Japan プラン コンパクト01 (01_01)
Shown the way the original file has it. Tap “Rotate 90°” if it reads sideways.Open original file ↗
Track plan © KATO Japan (katomodels.com) · reproduced as published · Rights holders can ask us to remove it: info@hobbeex.com
KATO JapanPlan_CPT01-01

プラン コンパクト01 (01_01)

Scale
N1:148–160
Gauge
9 mm
Footprint
90 × 90 cm
Track system
UNITRACK
Parts list
11 parts · with quantities

Source

Original page on KATO Japan ↗

Retrieved 2026-10-10

Parts list

11 parts31 pieces4 in our catalog

Purple part numbers open the catalog page. Grey ones aren't in the catalog yet.

SymbolPart no.NameQty
S12420-020—3
S6420-030—2
S6220-040—1
S62F20-041—1
S45.520-091—4
X9020-320—1
R150-4520-174Possible matchコンパクト曲線線路 R150mm14
EP150-45L20-240Possible match電動ポイントR150mm 左1
EP150-45R20-241Possible match電動ポイントR150mm 右1
ポイントスイッチ24-840Possible matchポイントスイッチ2
—22-012—1
Total31
