KATO JapanPlan07_01_23
UNITRACK 23 (07_01)
- Scale
- N1:148–160
- Gauge
- 9 mm
- Footprint
- Not stated
- Track system
- UNITRACK
- Parts list
- 25 parts · with quantities
Source
Retrieved 2026-10-10

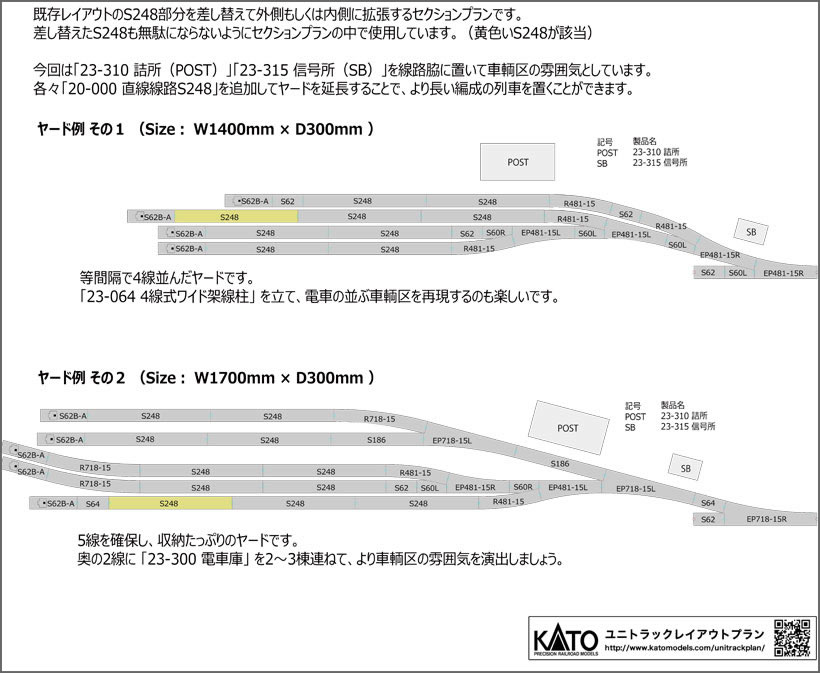

- Track plan ↗PDF · 1p
- Parts list ↗PDF · 1p
- Package list ↗PDF · 1p
- Track symbol key (shared by all plans) ↗PDF · 6p
Parts list
25 parts66 pieces12 in our catalog
Purple part numbers open the catalog page. Grey ones aren't in the catalog yet.
| Symbol | Part no. | Name | Qty |
|---|---|---|---|
| S248 | 20-000 | — | 8 |
| S62 | 20-040 | — | 4 |
| S62B-A | 20-046Possible match | 車止め線路A 62mm | 4 |
| R481-15 | 20-160 | — | 4 |
| EP481-15L | 20-220Possible match | 電動ポイント4番(左) | 2 |
| EP481-15R | 20-221Possible match | 電動ポイント4番(右) | 2 |
| /221 S60L | 20-220Possible match | 電動ポイント4番(左) | 3 |
| /221 S60R | 20-220Possible match | 電動ポイント4番(左) | 1 |
| 詰所 POST | 23-310 | — | 1 |
| 信号所 SB | 23-315 | — | 1 |
| S248 | 20-000 | — | 11 |
| S186 | 20-010 | — | 2 |
| S64 | 20-030 | — | 2 |
| S62 | 20-040 | — | 2 |
| S62B-A | 20-046Possible match | 車止め線路A 62mm | 5 |
| R718-15 | 20-150 | — | 3 |
| R481-15 | 20-160 | — | 2 |
| EP718-15L | 20-202Possible match | 電動ポイント6番(左) | 2 |
| EP718-15R | 20-203Possible match | 電動ポイント6番(右) | 1 |
| EP481-15L | 20-220Possible match | 電動ポイント4番(左) | 1 |
| EP481-15R | 20-221Possible match | 電動ポイント4番(右) | 1 |
| /221 S60L | 20-220Possible match | 電動ポイント4番(左) | 1 |
| /221 S60R | 20-220Possible match | 電動ポイント4番(左) | 1 |
| 詰所 POST | 23-310 | — | 1 |
| 信号所 SB | 23-315 | — | 1 |
| Total | 66 | ||
