KATO JapanPlan04
プラン 03_02
- Scale
- N1:148–160
- Gauge
- 9 mm
- Footprint
- 210 × 90 cm
- Track system
- UNITRACK
- Parts list
- 27 parts · with quantities
Source
Retrieved 2026-10-10

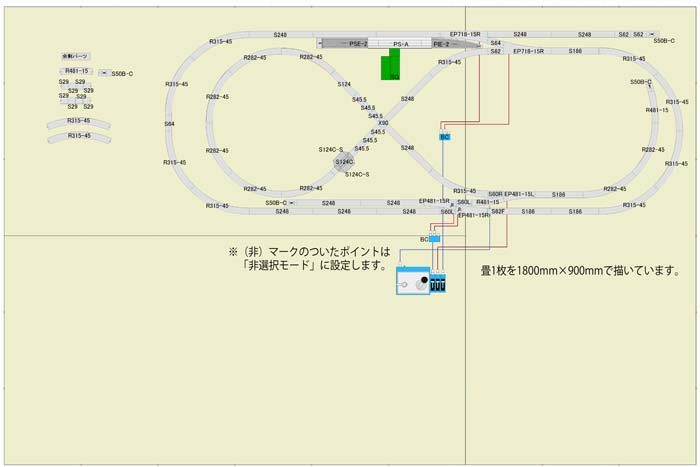

- Track plan ↗PDF · 1p
- Parts list ↗PDF · 1p
- Package list ↗PDF · 1p
- Track symbol key (shared by all plans) ↗PDF · 6p
Parts list
27 parts78 pieces8 in our catalog
Purple part numbers open the catalog page. Grey ones aren't in the catalog yet.
| Symbol | Part no. | Name | Qty |
|---|---|---|---|
| S248 | 20-000 | — | 12 |
| S186 | 20-010 | — | 4 |
| S124 | 20-020 | — | 1 |
| S124C | 20-021 | — | 1 |
| 踏切線路 スロープ S124C-S | 20-021 | — | 2 |
| S64 | 20-030 | — | 2 |
| S62 | 20-040 | — | 3 |
| S62F | 20-041 | — | 1 |
| S50B-C | 20-048Possible match | 車止め線路C 50mm | 3 |
| S45.5 | 20-091 | — | 6 |
| X90 | 20-320 | — | 1 |
| R282-45 | 20-110 | — | 8 |
| R315-45 | 20-120 | — | 10 |
| R481-15 | 20-160 | — | 2 |
| — | 24-817Possible match | Sジョイナー | 4 |
| EP718-15R | 20-203Possible match | 電動ポイント6番(右) | 2 |
| EP481-15L | 20-220Possible match | 電動ポイント4番(左) | 1 |
| EP481-15R | 20-221Possible match | 電動ポイント4番(右) | 2 |
| /221 S60L | 20-220Possible match | 電動ポイント4番(左) | 2 |
| /221 S60R | 20-220Possible match | 電動ポイント4番(左) | 1 |
| ポイントスイッチ | 24-840Possible match | ポイントスイッチ | 3 |
| 分岐コネクター（青・白） BC | 24-827 | — | 2 |
| PIE-2 | 23-103 | — | 1 |
| PS-A | 23-110 | — | 1 |
| PSE-2 | 23-113 | — | 1 |
| 地上駅舎 SG | 23-210 | — | 1 |
| — | 22-012 | — | 1 |
| Total | 78 | ||
