KATO JapanPlan02_88_108
Season3_44
- Scale
- N1:148–160
- Gauge
- 9 mm
- Footprint
- Not stated
- Track system
- UNITRACK
- Parts list
- 18 parts · with quantities
Source
Retrieved 2026-10-10

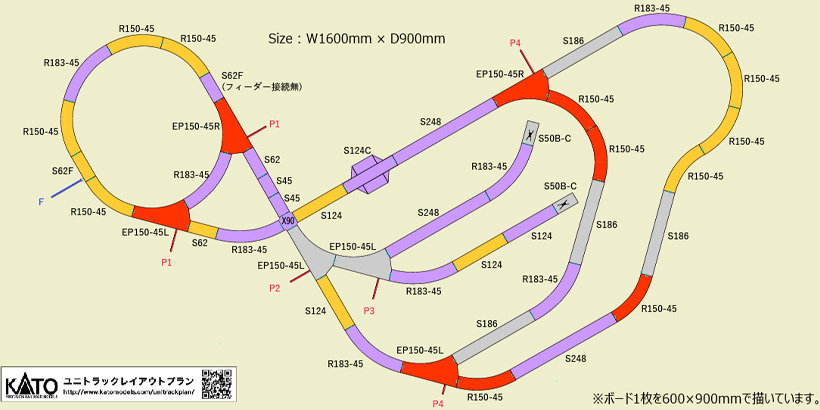

- Track plan ↗PDF · 1p
- Parts list ↗PDF · 1p
- Package list ↗PDF · 1p
- Track symbol key (shared by all plans) ↗PDF · 6p
Parts list
18 parts55 pieces8 in our catalog
Purple part numbers open the catalog page. Grey ones aren't in the catalog yet.
| Symbol | Part no. | Name | Qty |
|---|---|---|---|
| S248 | 20-000 | — | 3 |
| S186 | 20-010 | — | 4 |
| S124 | 20-020 | — | 4 |
| S124C | 20-026Possible match | リレーラー線路124mm(2本入) | 1 |
| S62 | 20-040 | — | 2 |
| S62F | 20-041 | — | 2 |
| S50B-C | 20-048Possible match | 車止め線路C 50mm | 2 |
| S45 | 20-091 | — | 2 |
| X90 | 20-320 | — | 1 |
| R183-45 | 20-172Possible match | コンパクト曲線線路 R183mm | 8 |
| R150-45 | 20-174Possible match | コンパクト曲線線路 R150mm | 12 |
| EP150-45L | 20-240Possible match | 電動ポイントR150mm 左 | 4 |
| EP150-45R | 20-241Possible match | 電動ポイントR150mm 右 | 2 |
| ポイントスイッチ | 24-840Possible match | ポイントスイッチ | 4 |
| 分岐コネクター(⻘・白) | 24-827 | — | 2 |
| — | 22-018 | — | 1 |
| — | 22-082Possible match | N用ACアダプター | 1 |
| 他 | 20-000 | — | — |
| Total | 55 | ||
