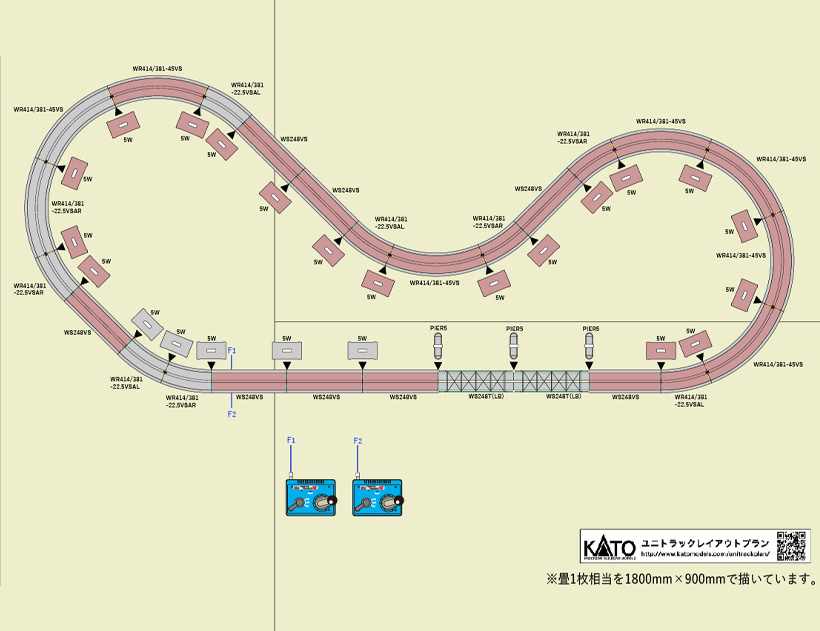

KATO Japan Season3 09
Shown the way the original file has it. Tap “Rotate 90°” if it reads sideways.Open original file ↗
Track plan © KATO Japan (katomodels.com) · reproduced as published · Rights holders can ask us to remove it: info@hobbeex.com
KATO JapanPlan02_37_57

Season3 09

Scale
N1:148–160
Gauge
9 mm
Footprint
Not stated
Track system
UNITRACK
Parts list
10 parts · with quantities

Source

Original page on KATO Japan ↗

Retrieved 2026-10-10

Parts list

10 parts82 pieces5 in our catalog

Purple part numbers open the catalog page. Grey ones aren't in the catalog yet.

SymbolPart no.NameQty
WS248VS20-401—8
WR414/381VS-4520-544—8
WR414/381VSAL20-545—4
WR414/381VSAR20-545—4
5W23-020Possible match複線高架 橋脚23
複線トラス鉄橋ライトブルー20-436Possible match複線トラス鉄橋(ライトブルー)2
PIER523-019Possible match複線橋脚 No.53
—24-817Possible matchSジョイナー26
—22-018—2
—22-082Possible matchN用ACアダプター2
Total82
