KATO JapanPlan02_34_54
Season3 06
- Scale
- N1:148–160
- Gauge
- 9 mm
- Footprint
- Not stated
- Track system
- UNITRACK
- Parts list
- 27 parts · with quantities
Source
Retrieved 2026-10-10

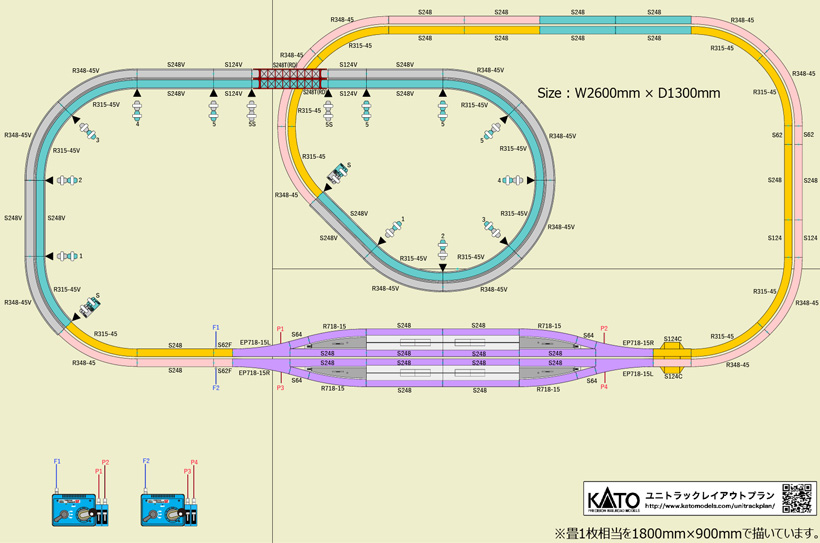

- Track plan ↗PDF · 1p
- Parts list ↗PDF · 1p
- Package list ↗PDF · 1p
- Track symbol key (shared by all plans) ↗PDF · 6p
Parts list
27 parts159 pieces13 in our catalog
Purple part numbers open the catalog page. Grey ones aren't in the catalog yet.
| Symbol | Part no. | Name | Qty |
|---|---|---|---|
| S248 | 20-000 | — | 24 |
| S124 | 20-020 | — | 4 |
| /027S124C | 20-026Possible match | リレーラー線路124mm(2本入) | 2 |
| リレーラー線路 複線用アダプター S124C-B | 20-027Possible match | 踏切線路#2 124mm | 1 |
| S64 | 20-030 | — | 4 |
| S62 | 20-040 | — | 2 |
| S62F | 20-041 | — | 2 |
| R315-45 | 20-120 | — | 8 |
| R348-45 | 20-132 | — | 8 |
| R718-15 | 20-150 | — | 4 |
| S248V | 20-400 | — | 8 |
| S124V | 20-420 | — | 4 |
| R315-45V | 20-520 | — | 8 |
| R348-45V | 20-530 | — | 8 |
| — | 24-817Possible match | Sジョイナー | 32 |
| 橋脚 階段部S | 23-015Possible match | 勾配橋脚基本セット (Pac) | 4 |
| 1 | 23-015Possible match | 勾配橋脚基本セット (Pac) | 4 |
| 2 | 23-015Possible match | 勾配橋脚基本セット (Pac) | 4 |
| 3 | 23-015Possible match | 勾配橋脚基本セット (Pac) | 4 |
| 4 | 23-015Possible match | 勾配橋脚基本セット (Pac) | 4 |
| 5 | 23-017Possible match | 橋脚NO5 (5ケ入) | 6 |
| 5S | 23-047Possible match | 単線鉄橋用橋脚No.5 50mm | 4 |
| 単線トラス鉄橋(朱) S248T(RD) | 20-430Possible match | 単線トラス鉄橋(朱) | 2 |
| ポイントスイッチ | 24-840Possible match | ポイントスイッチ | 4 |
| — | 22-018 | — | 2 |
| — | 22-082Possible match | N用ACアダプター | 2 |
| 他 | 20-000 | — | — |
| Total | 159 | ||
