KATO JapanPlan02_27_47
UNITRACK 47 (02_27)
- Scale
- N1:148–160
- Gauge
- 9 mm
- Footprint
- Not stated
- Track system
- UNITRACK
- Parts list
- 23 parts · with quantities
Source
Retrieved 2026-10-10

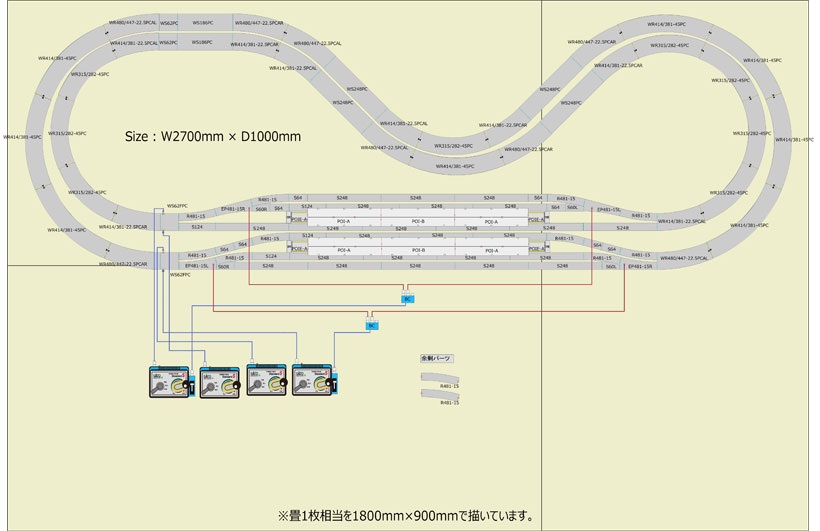

- Track plan ↗PDF · 1p
- Parts list ↗PDF · 1p
- Package list ↗PDF · 1p
- Track symbol key (shared by all plans) ↗PDF · 6p
Parts list
23 parts126 pieces7 in our catalog
Purple part numbers open the catalog page. Grey ones aren't in the catalog yet.
| Symbol | Part no. | Name | Qty |
|---|---|---|---|
| S248 | 20-000 | — | 24 |
| S124 | 20-020 | — | 4 |
| S64 | 20-030 | — | 8 |
| R481-15 | 20-160 | — | 10 |
| WS248PC | 20-004 | — | 4 |
| WS186PC | 20-012 | — | 2 |
| WS62PC | 20-042 | — | 2 |
| 複線フィーダー線路WS62FPC | 20-043 | — | 2 |
| WR414/381-45PC | 20-181 | — | 8 |
| WR414/381PCAL | 20-182 | — | 4 |
| WR414/381PCAR | 20-182 | — | 4 |
| WR315/282-45PC | 20-183 | — | 8 |
| WR480/447PCAL | 20-186Possible match | 複線アプローチ線路セットR480/447mm(左・右) | 4 |
| WR480/447PCAR | 20-186Possible match | 複線アプローチ線路セットR480/447mm(左・右) | 4 |
| EP481-15L | 20-220Possible match | 電動ポイント4番(左) | 2 |
| EP481-15R | 20-221Possible match | 電動ポイント4番(右) | 2 |
| /221 S60L | 20-220Possible match | 電動ポイント4番(左) | 2 |
| /221 S60R | 20-220Possible match | 電動ポイント4番(左) | 2 |
| — | 24-817Possible match | Sジョイナー | 16 |
| POI-A | 23-107 | — | 4 |
| POI-B | 23-108 | — | 2 |
| 近郊型島式ホームエンドA POIE-A | 20-121 | — | 4 |
| — | 22-012 | — | 4 |
| Total | 126 | ||
